Founding Rider Benefits
Be among the first Air 20 LiDAR owners. Help shape ADO SENSE through your riding feedback.
Registreer u vooraf om exclusieve oprichtersrechten te ontgrendelen.
Beperkt tot 36 exemplaren wereldwijd.
ADO Sense® 3.0
Radar sensing system
More Confidence
Continuously senses vehicles, obstacles and blind spots to keep you more aware on the road.
Automatic transmission
More Ease

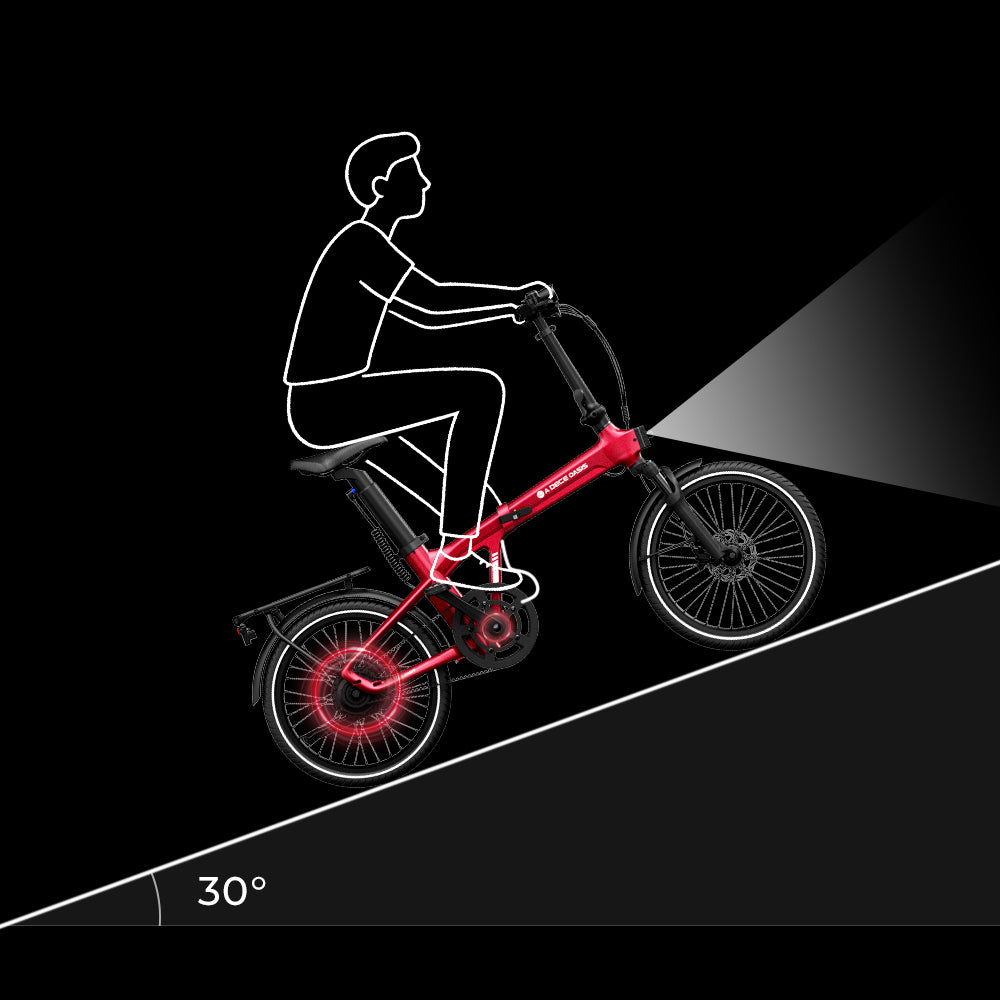

Radar detects slopes and auto-shifts gears for ease of riding.
Auto-shifting hub motor
Less Effort
36V/250W (50N·m) BAFANG H730 3-speed internal-gear motor for greater riding ease.
Pick your favorite color.
Berry Red (Limited Edition)
Elk detail geperfectioneerd
BAFANG H730-MOTOR
Interne automatische transmissie met 3 versnellingen | 250W | 50N·m
2,4'IPS SLIM DISPLAY MET NFC
2,4 inch IPS smartdisplay met NFC en IPX7 waterdichtheid voor direct koppelen en realtime ritgegevens binnen handbereik, bij regen of zonneschijn.
KOOLSTOFRIEM
Stil, schoon en onderhoudsvrij.
HYDRAULISCHE SCHIJFREMMEN
Soepele modulatie, onmiddellijke remkracht.
MIK-ACHTERRACK
Compatibel met MIK-accessoires
BATTERIJ VOOR LANGE BEREIK
Bereik tot 50 mijl | 37V10Ah | EN50604
HOGE HELDERHEID KOPLAMP
Koplamp met hoge helderheid voor maximale zichtbaarheid en veiligheid tijdens elke nachtelijke rit.
DUURZAAM OPVOUWBAAR PEDAAL
Robuust opvouwbaar pedaal, gebouwd voor langdurige duurzaamheid en moeiteloze, ruimtebesparende opslag.
Algemene specificaties
-
Bereik
Maximale actieradius: 100 km
*De werkelijke prestaties kunnen variëren afhankelijk van de temperatuur, de wegomstandigheden, het gewicht van de fietser, enz. -
Snelheid
25 km/u
*De motor stopt met het geven van trapondersteuning bij de aangegeven topsnelheid. Je kunt de aangegeven topsnelheid nog steeds overschrijden door puur op spierkracht te rijden. Deze limiet is vastgesteld in overeenstemming met de lokale regelgeving. -
Gewicht
Nettogewicht: 22 kg (inclusief standaardaccessoires)
Totaalgewicht: 28,5 kg (gewicht van de verpakking)
Maximaal toegestaan gewicht: 120 kg*Alle vermelde gewichten hebben een tolerantie van +/- 3%-5%.
-
Certificaten
SGS CE
-
Oponthoud
Vergrendelbare verende voorvork
-
Overdragen
Automatische drieversnellingsbak
-
Bandenmaat
20*2,0 inch
-
Trapondersteuning
Dubbelzijdige koppelingssensor
-
Assist Intelligent
Trapondersteuning niveau 0-3
-
Rider Heights
150 cm-200 cm
-
Bedrijfstemperatuur
-10~50°C
-
Waterdichtheidsniveau
IPX6 (scherm IPX7)
Elektronische specificaties
-
Nominaal motorvermogen
36V/250W (50N.m)
-
Sensor
Dubbelzijdige koppelingssensor
-
Batterij
37V10Ah (EN50604 CAN)
-
Voedingsadapter
42V/3A
-
Oplaadtijd
4-6 uur
-
Waarnemingssysteem
LiDAR aan de voorzijde met geïntegreerde gyroscoop + millimetergolfradar aan de achterzijde
-
Waarschuwings- en monitoringsbereik voor frontale botsingen
0,9 m * 20 m
-
Bewakingsbereik van het Front Cross Traffic Alarm
15 m * 6 m
-
Detectie van de dode hoek - Bewakingsbereik
5 m * 5 m
-
Monitoringbereik van de rijstrookwisselassistent
5 m * 40 m
Specificaties van de componenten
-
Motor
BAFANG 3-traps automatische schakelmotor
-
Transmissiesysteem
Koolstofband
-
Trapondersteuning
Dubbelzijdige koppelingssensor
-
Kader
Aluminiumlegering
-
Bandenmaat
20*2,0 inch
-
Schokabsorptie
Hydraulisch vergrendelbare, verstelbare schokdempervork
-
Remmen
Links/rechts gesmede aluminium 2-vingerhendel
-
Wielen
Dubbelwandig aluminium
-
Kettingring
Aluminiumlegering 64T/170mm
-
Pedalen
Opklapbare pedalen
-
Stoel
Standaard
-
alarmapparaat
Mechanische bel
-
LCD
2,4 inch IPS kleurenscherm met NFC
-
Licht
koplamp (30 LUX)
-
Spatbord
Aluminiumlegering
-
Achterrek
Aluminiumlegering met MIK-legering (maximale belasting: 25 kg)
FAQs
The ADO Air 20 LiDAR pre-launch offer includes:Up to €500 off with a Founder Price Guarantee. (Best Price）Founder Kit worth €300.3-year warranty.Only 36 units of the ADO Air 20 LiDAR in the exclusive Berry Red colour will be available worldwide. Register early to stay informed about the launch and Founder benefits.
Yes! Simply pre-register for the ADO Air 20 LiDAR now, then purchase the bike once it officially goes on sale to enjoy the exclusive Founder benefits.
No! Pre-registration is completely free. Simply enter your email address to join the ADO Air 20 LiDAR Founder list and stay updated on the official launch and exclusive Founder benefits.
The ADO Air 20 LiDAR is set to launch in November 2026. The exact launch date and pricing details will be announced via email, so make sure to pre-register to stay up to date and be among the first to know!
ADO Sense® 3.0 combines intelligent riding assistance with environmental sensing technology. The forward-facing LiDAR scans up to 20 metres ahead to help detect obstacles and changes in the riding environment, while the rearward millimetre-wave radar monitors approaching traffic from behind.Together, these technologies are designed to help riders become more aware of their surroundings and enjoy a more informed riding experience.
The rearward millimetre-wave radar is designed to monitor approaching traffic and support blind-spot detection and lane-change assistance. It provides additional information about surrounding traffic, helping you make more informed riding decisions.Always check your surroundings before changing direction or position on the road.
The ADO Air 20 LiDAR features a BAFANG H730 rear hub motor with an integrated 3-speed automatic transmission. With 250W of rated motor power and up to 50Nm of torque, the system is designed to make everyday riding smoother and reduce the need for manual gear changes.
The ADO Air 20 LiDAR is advertised with a range of up to 62 miles on a single charge, supported by a 37V 10Ah battery.Actual range may vary depending on rider weight, terrain, weather, riding style and assistance settings.
Yes. The ADO Air 20 LiDAR is designed as a folding electric bike, making it suitable for riders who need a more compact storage solution for everyday commuting.
A 3-year warranty is advertised as part of the Founder benefits. Full details, including warranty coverage, exclusions and the claim process, will be subject to the official warranty terms for the ADO Air 20 LiDAR.
Deliveries of the ADO Air 20 LiDAR are expected to begin in December 2026.We currently offer delivery to mainland EU. If you’re located outside these areas, please contact our team at official@adoebike.com to confirm delivery availability before placing your order.
Yes! The European version of the ADO Air 20 LiDAR fully complies with EU EPAC (Electrically Power Assisted Cycle) regulations, ensuring it meets the requirements for legal use as an electric bicycle on public roads across the European Union.
