1 19

ADO AIR 20

€1.299,00 €1.099,00 Save €200,00
Shipping calculated at checkout.
207 reviews
207 reviews
Das erste 20"-Klapp-E-Bike mit Carbon-Riemenantrieb, leicht zu tragen und platzsparend.
Begrenzte Garantie: 2 Jahre
  • Leichtgewicht von 16 kg
  • Bis zu 100 km Reichweite
  • Drehmomentsensor
  • Carbon-Riemenantrieb
  • Unterstützt ADO Smart APP
  • Tragbarer Akku
  • Hydraulische Scheibenbremsen

Beliebtes Zubehör
Magnetische Magnetix-Schnalle für ADO Air 20

Magnetische Magnetix-Schnalle für ADO Air 20

Bestellen Sie jetzt The Air 20 und erhalten Sie kostenloses Zubehör als Bonus!

FREE
Farbe: Blau
Version: CE Version (250W)
Größe für Fahrer: 150 – 200 cm (4'11 – 6'7 ")
Pay with Klarna:
Pay now. Direct Bank Transfer.
Pay in 30 days. Interest-free.
Pay over time. Monthly financing.
Buyer protection included.

The price shown includes the shipping fee and VAT. Prices in different countries may vary due to different shipping fees and VAT.

Farbe: Blau
Version: CE Version (250W)

Die Revolution der faltbaren E-Bikes

Ultraleicht und zusammenklappbar für alle Ihre Pendler- und Freizeitbedürfnisse.

Aus €1.099

Farbe

Wähl deine Farbe

Blau
AIR 20
Blau
Zusammenklappbar und tragbar

Stadtkolibri

Dank seines leichten Designs lässt es sich problemlos mit einer Hand anheben. Nehmen Sie es mit nach Hause, zur Arbeit, ins Auto oder in die U-Bahn.

16 KG

Superleichtgewicht |Reite den Wind

Carbonriemen und Drehmomentsensor

Entfesseln Sie Ihre Fahrt

Schluss mit schmierigen Ketten – jetzt mit der Carbon-Antriebsrevolution. Der intelligente Drehmomentsensor wandelt jede Bewegung in sanfte Motorleistung um.

2-30.000 km wartungsfrei

Sanftes Fahren | Befreie dich

Kleiner aber leistungsstarker Akku

Genießen Sie puren Fahrspaß

Bietet Vielseitigkeit für längere Fahrten und passt dennoch in kleine Räume – ob in öffentlichen Verkehrsmitteln oder in Ihrem Büro.

Reichweite bis zu 100km

Fahren Sie frei | Genießen Sie in vollen Zügen

IPS-Farbdisplay

Stilvolle Optik, zuverlässige Funktion

Wasserdichtes Design mit hervorragender Sichtbarkeit im Sonnenlicht, das alle wichtigen Fahrdaten liefert.

Alles, was Sie brauchen, auf einen Blick

Bessere Erfahrung | Bester Reisepartner

Jedes Detail verfeinert

Details, die Sie an diesem E-Bike-Meisterwerk lieben werden.

HYDRAULISCHE SCHEIBENBREMSEN

Bietet zuverlässige Bremskraft bei allen Wetterbedingungen und sorgt für sanftes und zuverlässiges Bremsen.

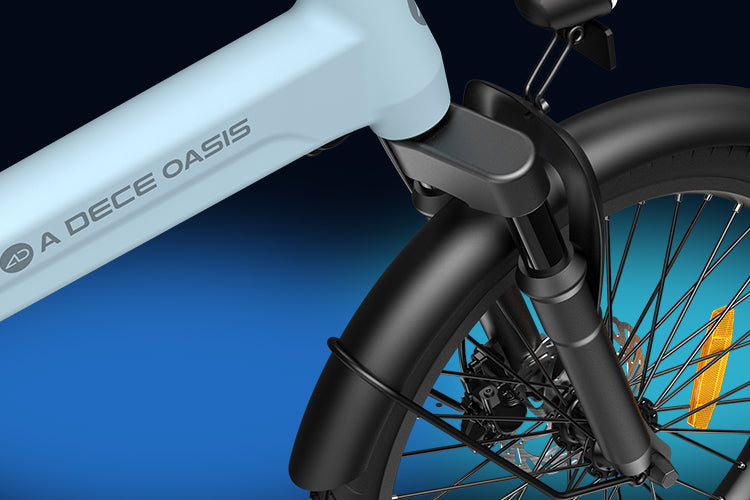

Vorderradgabelfederung

Ermöglicht den Starrmodus für effizientes Fahren auf glatten Straßen.

Swift-Rahmen

Leicht und aerodynamisch für verbesserte Stabilität und Komfort, ideal sowohl für den Stadtverkehr als auch für Freizeitfahrten.

20-Zoll-Pannenschutzreifen

1,95 Zoll breite Reifen bieten überlegene Anpassungsfähigkeit und Haltbarkeit für städtische Umgebungen.

E-Mark IPX5 Stirnlampe

Helle LED-Scheinwerfer mit Weitwinkelstrahl für verbesserte Sicht.

IPS 2,4-Zoll-Farbdisplay

Gut lesbarer Bildschirm mit einer einfachen Taste zum Umschalten zwischen 5 Stufen des Pedalunterstützungsmodus.

Carbon-Riemenantrieb

Wartungsfrei, rostbeständig, leise und für lang anhaltende Leistung gebaut.

Eine sanfte, schwungvolle Fahrt

Drehmomentsensor

Genießen Sie einen reaktionsschnellen Schub, da jede Ihrer Bewegungen durch den Drehmomentsensor mühelos in sanfte motorisierte Unterstützung umgewandelt wird.

Elegantes Radfahren

Carbon-Gürtel

Erleben Sie bis zu 30.000 km wartungsfreies Fahren. Verabschieden Sie sich von öligen und rostigen Ketten.

Intuitive Kraft

Bürstenloser Nabenmotor

Holen Sie sich einen kraftvollen und leisen Schub. Erleben Sie Spitzenleistung und Effizienz.

AS SEEN IN

"Ich liebe das Design und die Verwendung eines Drehmomentsensors, eines Riemenantriebs und hydraulischer Bremsen. "

"Das leichte ADO Air fährt sich dadurch sehr dynamisch, obwohl das vor allem am Antriebssystem liegt."

"Getestet mit vielen Tests und Tests im Labor. Alle Komponenten des ADO Air 20 "

ZERTIFIKATE

Intelligentes Fahren.

Motorgleiten.

Kommunizieren Sie direkt mit unserem Team über das integrierte Hilfecenter.

Stellen Sie eine Verbindung mit der ADO-App her, um Ihre Fahrten in Echtzeit aufzuzeichnen und Ihre Statistiken zu verfolgen.
Übertragen Sie Anweisungen direkt auf das integrierte LCD-Display für eine nahtlose Navigation.
Kommunizieren Sie direkt mit unserem Team über das integrierte Hilfecenter.

Was sagen Online-Rezensenten?

TechMagnet

Modell: ADO Air 20

Dies ist ein perfektes Pendler-E-Bike. Es ist super tragbar und superleicht, sodass Sie es überallhin mitnehmen können. Das Fahrrad verfügt über einen superschnellen Drehmomentsensor

TommysTechReviews

Modell: ADO Air 20

Der Motor läuft super weich und leise. Das gefällt mir recht gut und ich bin glaube ich noch nie ein Fahrrad mit Riemen gefahren, was cool ist.

TechTablets

Modell: ADO Air 20

Du bekommst hier ein fantastisches Fahrrad mit hervorragender Bremsleistung, sehr ruhiger, angenehmer Fahrt. ADO, du hast deine Qualität gerade deutlich verbessert!

Das erste 20“ Falt-E-Bike mit Carbon-Riemenantrieb, leicht zu transportieren und platzsparend.

AIR 20 PRO AIR carbon

"Fahren Sie durch die Straßen und fangen Sie jeden Blick ein."

Air 20 Ebike

Paar Schmutzkappen

Luftakku

42V 2A Akkuladegerät

Montagewerkzeug

Elektronische Spezifikation

  • Markierte Macht

    CE Verison: 250W

    Intl. Version: 250W

  • Spitzenleistung

    CE Verison: 250W

    Intl. Version: 350W

  • Batterie

    36V/9.6 Ah

  • Drehmoment

    CE Verison: 37N.m

    Inter Version: 42N.m

  • Ladezeit

    4-6 Stunden

  • Anzeige

    IPS-Farbdisplay

Allgemeine Spezifikation

  • Reichweite

    100 km maximale Reichweite

  • Geschwindigkeit

    25 km/h

  • Zertifikate

    SGS CE

  • Suspension

    ohne

  • Übertragung

    Einzelgeschwindigkeit

  • Reifengröße

    20*1,95 Zoll Reifen

  • Tretunterstützung

    Drehmomentsensor

  • Assist Intelligent

    0-3-stufige Tretunterstützung

  • Reiterhöhen

    150cm-200cm

  • Arbeitstemperatur

    -10~50°C

  • Gewicht

    Nettogewicht: 16+ kg

    (ohne Zubehör)Gesamtgewicht: 17+ kg (mit Zubehör)

    Zulässiges Höchstgewicht: 120 kg*Alle Gewichtsangaben haben eine Toleranz von +/- 3 % - 5 %. Das Nettogewicht umfasst die Batterie, jedoch nicht das gesamte Zubehör. Das Gesamtgewicht umfasst die Batterie und das gesamte Zubehör.

Komponentenspezifikation

  • Rahmen

    Leichter Aluminiumrahmen

  • Bremsen

    Hydraulische Scheibenbremsen

  • Räder

    Doppelwandiges Aluminium

  • Gabel

    Standard

  • Scheinwerfer

    IPX5 Wasserdicht 1200 Lumen

  • Rücklicht

    Reflektor-Rücklicht

  • Kettenblatt

    Carbon-Gürtel

  • Pedale

    Klapppedale

  • Sitz

    Standard

Geometrie

  • GRÖSSE (mm)
    Einheitsgröße
  • A Sitzrohrlänge
    370
  • B Steuerrohrlänge
    330
  • C Oberrohrlänge
    630
  • D Gabellänge
    310
  • E Erreichen
    420
  • F Maximale Sitzhöhe
    960
  • G Minimum Seat Height
    740
  • H Total Length
    1560
  • I Max Handlebar
    1150
  • J Mini Handlebar
    1020
  • K Standover Height
    600
  • L Wheel Diameter
    510
  • M Wheelbase
    1060
  • N Chainstay Length
    410

F.A.Q.

Ist eine Geschwindigkeitsänderung möglich? Ist es wetterfest?

Das ADO Air 20 verfügt über einen einzigen Gang. Sie können jedoch zwischen drei elektrischen Unterstützungsstufen wählen. Darüber hinaus ist das ADO Air 20 mit einem intelligenten Drehmomentsensorsystem ausgestattet, das Ihnen je nach Gelände sofortige Unterstützung bietet. So erhalten Sie selbst bei Fahrten oder beim Anfahren an einer Steigung sofort die benötigte Unterstützung, selbst mit nur einem Gang. Das ADO Air 20 ist IPX5-wasserdicht und das IPS-Display IPX7-wasserdicht. Alle elektronischen Komponenten sind gegen starkes Regen- und Staubeindringen versiegelt.

Ist ADO Air 20 zertifiziert?

Gemäß SGS CE EN15194 und SGS UKCA entspricht ADO Air 20 den Anforderungen der Maschinenrichtlinie (2006/42/EG), der EMV-Richtlinie (2014/30/EU) und der Funkanlagenrichtlinie (2014/53/EU) sowie DIN EN 15194:2017, und die ADO Air 20-Batterie entspricht dem Prüfstandard UN 38.3 für Lithium-Ionen-Batterien.

Was ist der Unterschied zwischen der internationalen und der EU-Version? Welche Option ist für mich die beste?

Beachten Sie bei Ihrer Entscheidung die E-Bike-Gesetze in Ihrem Land: * EU-Version entspricht den E-Bike-Gesetzen der meisten EU-Länder: kein Gashebel eingebaut, Höchstgeschwindigkeit 25 km/h, Spitzenleistung 250 W. * Internationale Version ohne Einschränkungen: Gashebel eingebaut, Höchstgeschwindigkeit 30 km/h, Spitzenleistung 350 W. Wenn Sie die internationale Version des ADO Air 20 innerhalb der EU bestellen, erhalten Sie ein Ladegerät, das den EU-Spezifikationen entspricht. Es ist jedoch offiziell nicht erlaubt, mit dem ADO Air 20 in der internationalen Version auf öffentlichen Straßen in der EU zu fahren. Sie dürfen das Gerät nur besitzen und auf Privatgrundstücken fahren.

Wie lange ist die Garantiezeit?

5 Jahre Garantie auf Fahrradrahmen; 12 Monate Garantie auf Controller, Motoren, Akkus, Gabeln, Steuerrohre, Lenker, Ladegeräte, Pedale, Schwungräder und Kettenstreben. Sollten innerhalb dieser Zeit produktionsbedingte Mängel auftreten, kümmern wir uns gemäß unserer Garantie darum. Für weitere Informationen wenden Sie sich bitte an unseren Kundenservice.official@adoebike.com https://www.adoebike.com/warranty-policy/

In welche Länder darf versendet werden?

Länder, in die wir kostenlos versenden: USA (außer AK/HI/PR), Chile, Australien, Vereinigtes Königreich, Spanien, Rumänien, Slowenien, Slowakei, Portugal, Italien, Polen, Niederlande, Luxemburg, Litauen, Irland, Ungarn, Griechenland, Deutschland, Frankreich, Finnland, Estland, Dänemark, Tschechien, Bulgarien, Kroatien, Belgien, Österreich

Welche Zahlungsmethoden werden von der Website unterstützt?

Paypal / Visa / MasterCard / Bancontact / iDEAL / Klarna / Przelewy24 / Giropay Weltweit: Paypal / Visa / MasterCard Bancontact: Belgien IDEAL: Niederlande Giropay: Deutschland Klarna: Vereinigtes Königreich, Deutschland, Niederlande, Spanien, Italien Przelewy24: Polen
